In the world of advanced manufacturing, reaction injection molding (RIM) has carved a unique niche due to its versatility, cost-effectiveness, and applicability in producing complex parts. With innovations driving industries such as automotive, aerospace, medical devices, and consumer goods, understanding the capabilities and functionality of reaction injection molding has become imperative for design engineers, product developers, and manufacturers alike.
This article takes an in-depth look at reaction injection molding, exploring its processes, types, advantages, and how it compares to traditional manufacturing methods like injection molding, compression molding, and thermoforming. We'll also analyze current market trends, technological developments, and frequently asked questions to give you a comprehensive understanding of why reaction injection molding is becoming a go-to solution for low- to medium-volume manufacturing with high precision and complex geometries.
Reaction injection molding, often abbreviated as RIM, is a manufacturing process that involves injecting two or more liquid reactants into a mold where they chemically react and cure to form a solid plastic part. Unlike traditional injection molding, which uses melted thermoplastics, reaction injection molding utilizes thermosetting polymers like polyurethane, polyurea, or epoxy.
The core principle behind reaction injection molding is that the raw materials are mixed and injected into the mold in liquid form, allowing for the production of lightweight yet highly durable parts with intricate designs and complex geometries.
Utilizes thermoset plastics
Low-viscosity materials allow for detailed mold filling
Chemical curing rather than cooling
Ideal for low-to-medium production volumes
Parts can be lightweight, strong, and resistant to chemicals or heat
Reaction injection molding is especially popular in industries that require tailored mechanical properties, such as automotive bumpers, dashboards, medical housings, and industrial enclosures.
To cater to diverse applications, several types of reaction injection molding have emerged, each offering specific benefits based on material selection and process configuration. Here are the most common types:
SRIM involves reinforcing the plastic matrix with glass fibers or mats, resulting in parts with enhanced structural integrity. This is ideal for large automotive components like door panels or underbody shields.
Benefits:
Higher strength-to-weight ratio
Good dimensional stability
Excellent impact resistance
RRIM incorporates chopped fiberglass or other fillers into the resin before injection, improving rigidity and heat resistance. It's commonly used in automotive, agriculture, and construction equipment parts.
Benefits:
Improved mechanical strength
Faster cycle times
Cost-effective for medium-volume production
This process produces soft, flexible parts using polyurethane elastomers. It's often used for seating, armrests, interior panels, and vibration dampening components.
Benefits:
Soft-touch aesthetics
Vibration and noise dampening
High comfort and ergonomic design
Used when faster reaction times and uniform mixing are required, this variation uses higher injection pressures to fill molds faster and more consistently.
Benefits:
Shorter cycle times
Precision part formation
Suitable for thin-walled sections
The reaction injection molding process differs significantly from traditional plastic molding techniques. Here's a step-by-step breakdown:

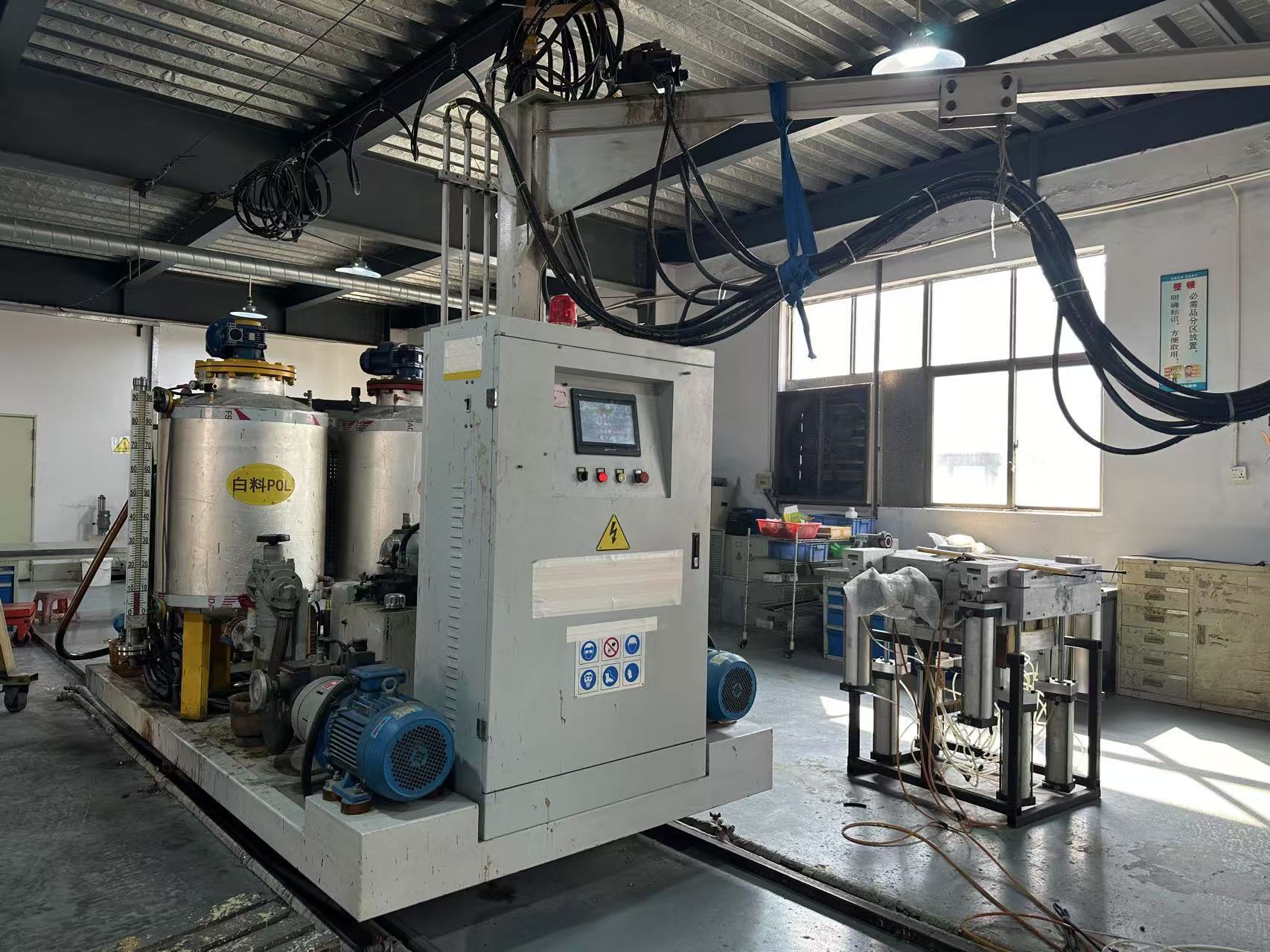

Two or more liquid components (commonly isocyanate and polyol) are stored in separate heated tanks. These chemicals are kept under precise temperature and pressure to ensure consistency.
The liquid components are metered and mixed in a high-pressure impingement mix head. This ensures a homogeneous mixture before entering the mold.
The mixed materials are injected into a pre-heated mold at low pressure. The low viscosity of the liquid allows it to flow into intricate mold cavities and around inserts or cores.
Inside the mold, a chemical reaction begins immediately, converting the liquid into a solid thermoset plastic. Curing times vary depending on material and part thickness but typically range from 30 seconds to several minutes.
Once cured, the part is demolded and may undergo secondary processing such as trimming, painting, or assembly.
| Step | Description |
|---|---|
| 1 | Raw material storage and conditioning |
| 2 | Metering and high-pressure mixing |
| 3 | Injection into closed mold |
| 4 | Chemical polymerization and curing |
| 5 | Part removal and post-processing |
This process enables reaction injection molding to produce parts with excellent surface finish, dimensional accuracy, and design complexity.
Reaction injection molding offers a host of advantages that make it suitable for a wide range of applications. Here's a detailed analysis of why many industries are shifting toward RIM:
Due to the use of thermosetting resins and fiber reinforcements, RIM parts are both lightweight and structurally sound, making them ideal for automotive, aerospace, and transportation industries.
The low-viscosity liquids can flow into complex molds, allowing for the production of parts with intricate designs, undercuts, and fine details without compromising structural integrity.
RIM uses aluminum molds, which are significantly cheaper than steel molds used in injection molding. This makes it highly attractive for low-volume production and prototyping.
A wide range of polyurethanes, polyureas, and epoxies can be used to tailor the properties of the final product, including impact resistance, chemical resistance, flexibility, and thermal stability.
Although curing is required, advanced formulations can cure in under a minute, leading to shorter production cycles compared to traditional thermoset processes.
RIM produces minimal waste, and the energy required for processing is lower than thermoplastic molding due to lower processing temperatures.
| Feature | Reaction Injection Molding | Injection Molding | Compression Molding | Thermoforming |
|---|---|---|---|---|
| Material Type | Thermosets | Thermoplastics | Thermosets | Thermoplastics |
| Mold Cost | Low | High | Medium | Low |
| Cycle Time | Medium | Fast | Slow | Fast |
| Complexity | High | High | Medium | Low |
| Volume Suitability | Low–Medium | High | Low | Medium |
| Surface Finish | Excellent | Excellent | Good | Fair |
| Weight | Lightweight | Medium | Heavy | Lightweight |
In the fast-evolving world of manufacturing, reaction injection molding stands out as a flexible, efficient, and cost-effective process for producing complex and durable plastic parts. Its unique ability to combine low-pressure injection with high-performance thermoset materials makes it particularly valuable for applications in automotive, medical, aerospace, and consumer electronics.
Compared to traditional plastic molding techniques, reaction injection molding offers a compelling combination of lower tooling costs, material versatility, and superior part characteristics. As industries demand more customization, lightweight components, and smaller production runs, reaction injection molding will continue to rise in relevance.
By embracing reaction injection molding, manufacturers can innovate faster, reduce costs, and deliver high-quality products that meet the rigorous demands of modern design and performance standards.
Reaction injection molding primarily uses thermosetting polymers like polyurethane, polyurea, and epoxy resins. These materials can be customized with additives for improved properties such as flame resistance, UV stability, or elasticity.
The key difference is that reaction injection molding uses liquid thermosets that chemically cure in the mold, while traditional injection molding uses molten thermoplastics that cool to solidify. RIM allows for more complex parts, lower tooling costs, and better performance in harsh environments.
While RIM is typically used for low to medium-volume production, technological advancements and automated systems are making it increasingly viable for higher volumes, especially in niche applications.
Common industries include:
Automotive (bumpers, dashboards, fenders)
Medical (equipment housings, enclosures)
Aerospace (interior panels, covers)
Industrial (machine guards, protective casings)
Consumer Electronics (enclosures, ergonomic components)
Yes. Reaction injection molding parts can be painted, textured, or coated post-production. The surface finish from the mold is typically of high quality, reducing the need for extensive finishing.
RIM is considered environmentally friendly due to its low energy consumption, minimal material waste, and the availability of bio-based polyols that reduce dependency on fossil fuels.
